PRODUCTS
Additive Manufacturing Furnace

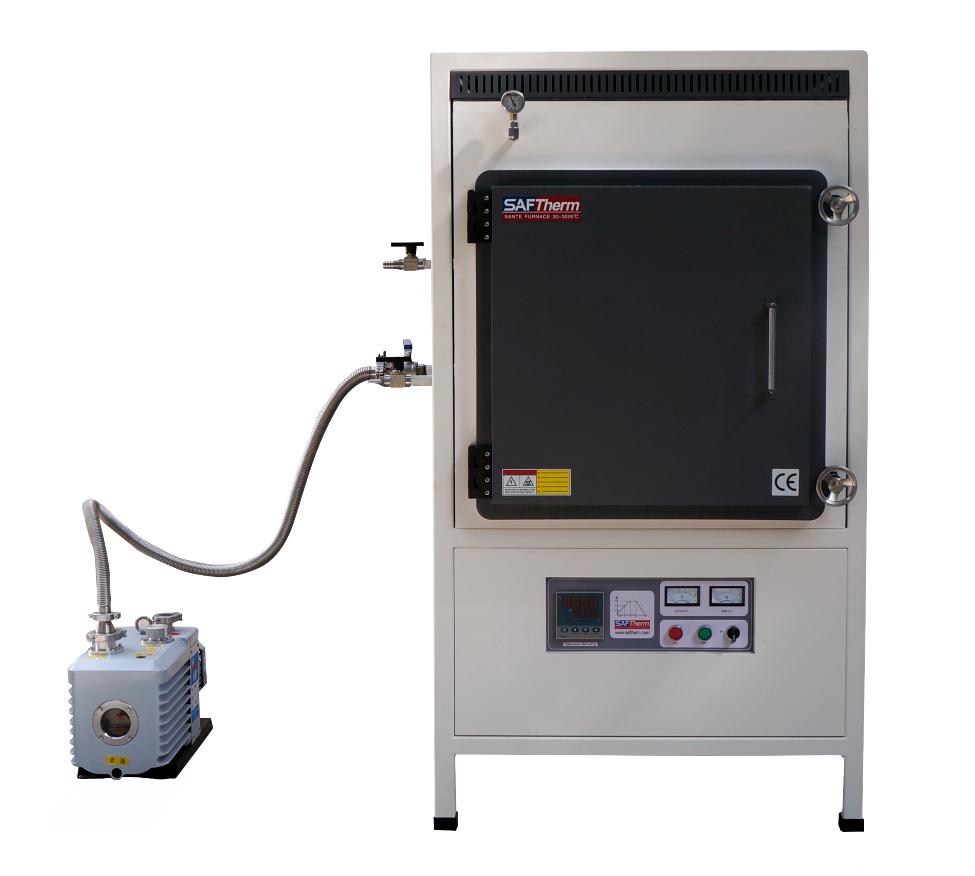

1700℃ Additive Manufacturing Furnace
Double sealing door, heating from 2 sides
Gas Ports and Water Cooling Ports
Vaccum Pump
Introduction
Additive Manufacturing, commonly known as 3D printing, combines computer-aided design, material processing and molding technology, based on digital model files, and uses software and numerical control systems to combine special metal materials, non-metal materials and medical biological materials , According to the methods of extrusion, sintering, melting, light solidification, spraying, etc., layer by layer, the manufacturing technology of manufacturing physical objects. This product is mainly used in the sintering process of additive manufacturing to solidify and sinter metallic or non-metallic materials. The special furnace air circulation system ensures the degreasing and pre-sintering of the materials during the sintering process. The product does not crack or crack at the high-temperature sintering stage. No deformation, no pollution, high yield.
Many Additive Manufactured metal components require a heat-treatment solution with precise temperature uniformity. This ensures the manufactured parts adhere to the proper metallurgical properties of the selected metal alloy. Atmosphere furnace with low vacuum to exchange the gas provides a possibility to additive manufacturing, which is called 3D print generally. Our furnaces are designated for all the technologies includes metal processing – melting or sintering of metallic powders.
Main Features
Tmax 1700 °C
1800 grade ceramic fibre as insulation material
Heated by molybdenum disilicide elements
Heating can be two sides or more sides
Thermocouple type B (1760 °C)
Optional Accessories
Industrial chiller
Vacuum gauge
Vacuum pumps
Built-in RS485 port and USB adaptor for computer control
Mass flow meter
|
Model No. |
TMax (℃) |
Inner Chamber Dimensions （mm） |
Volume （I） |
Power Supply |
||
|
W |
D |
H |
||||
|
STQ-18-17 |
1700 |
250 |
300 |
250 |
18 |
6KW/1 Phase |
|
STQ-64-17 |
1700 |
400 |
400 |
400 |
64 |
18KW/3 Phases |
Note:Chamber Size could be customized as per requests
