1200C Elevator Furnace

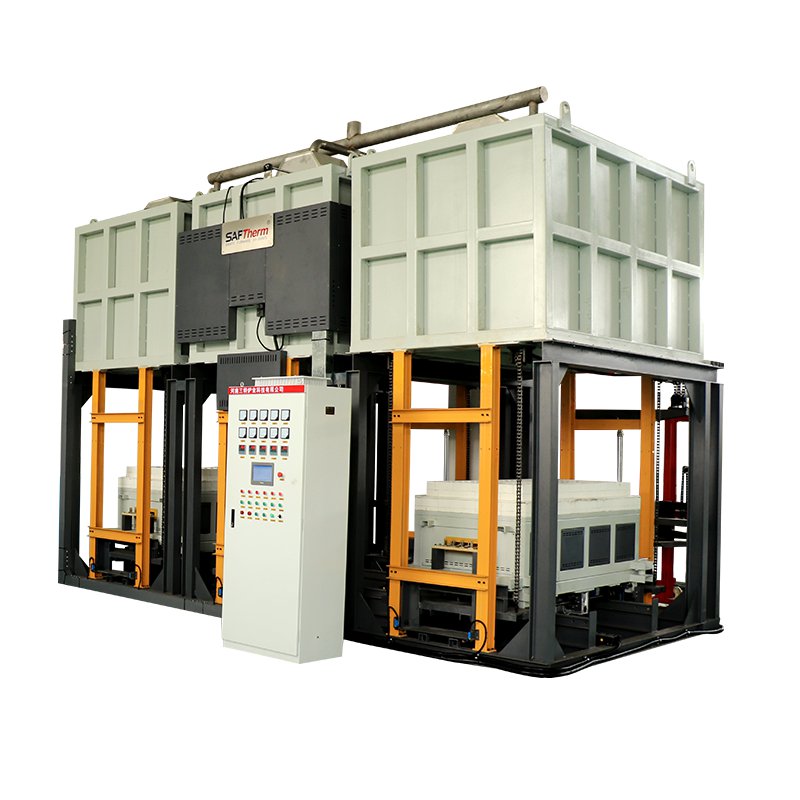

Elevator furnace system with cooling station and table changing system
Sliding Bottom

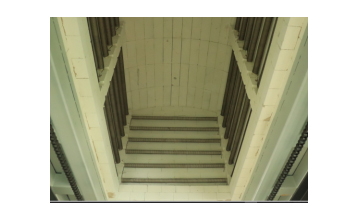

Inner Chamber with Heating Elements
Transmission Chain
Introduction
The 1200C series Elevator furnaces are ideal for reduction, calcination, sintering, application of coatings, and other processes. The furnace features with bottom loading available four sides.
Main Features
Tmax 1200 °C
Motor driven exhaust air flap, switchable via the program
Bottom loading
Bottom heating protected by SiC tiles which provide for a level stacking surface
High quality high alumina light-mullite bricks
Heating elements mounted on support tubes provide for free radiation and long service life of the heating wire
Heating from five sides
Thermocouple type N (1260 °C)
7 Inch touchscreen Temp Controller with recording of process data with USB adaptor
Model No. | TMax (℃) | Inner Chamber Dimensions （mm） | Volume （I） | Power Supply | ||
W | D | H | ||||
STD-96-12 | 1200 | 400 | 600 | 400 | 400 | 18KW/3-Phase |
STD-150-12 | 1200 | 450 | 530 | 590 | 590 | 24KW/3-Phase |
STD-288-12 | 1200 | 600 | 800 | 600 | 600 | 30KW/3-Phase |
STD-640-12 | 1200 | 800 | 1000 | 800 | 800 | 45KW/3-Phase |
| STD-1200-12 | 1200 | 1000 | 1200 | 1000 | 1000 | 80KW/3-Phase |
Note:Chamber Size could be customized as per requests
1400C Elevator Furnace
1400C degree Bottom Loading Furnace
Inner chamber with SiC heaters
Firing Chamber
Introduction
The 1400C series Elevator furnaces are ideal for reduction, calcination, sintering, application of coatings, and other processes. The furnace features dual-housing, adopts powerful U type Silicon carbide rods as heaters, vertically distributed in four sides.
Main Features
Tmax 1400 °C
Motor driven exhaust air flap, switchable via the program
Bottom loading
Bottom heating protected by SiC tiles which provide for a level stacking surface
High quality high alumina light-mullite bricks
Heated by silicon carbide elements
Heating from five sides
Thermocouple type S (1460 °C)
7 Inch touchscreen Temp Controller with recording of process data with USB adaptor
Model No. | TMax (℃) | Inner Chamber Dimensions （mm） | Volume （I） | Power Supply | ||
W | D | H | ||||
STD-96-12 | 1200 | 400 | 600 | 400 | 400 | 18KW/3-Phase |
STD-150-12 | 1200 | 450 | 530 | 590 | 590 | 24KW/3-Phase |
STD-288-12 | 1200 | 600 | 800 | 600 | 600 | 30KW/3-Phase |
STD-640-12 | 1200 | 800 | 1000 | 800 | 800 | 45KW/3-Phase |
| STD-1200-12 | 1200 | 1000 | 1200 | 1000 | 1000 | 80KW/3-Phase |
Note:Chamber Size could be customized as per requests
1700C Elevator Furnace
1700C Bottom Loading Sintering Furnace
Lifting bottom
Inner Chamber
Touchscreen panel
Introduction
The 1700C series elevator furnace is ideal for sintering of zirconia dental crowns and frameworks. The elevator furnace/ bottom loading furnace has an automatic lifting bottom, round chamber, adopts U type MoSi2 rods as heaters, vertically distributed in all sides of the chamber, ensures an improved temperature gradient.
Main Features
Tmax 1700 °C
1800 grade ceramic fibre as insulation material
Heated by molybdenum disilicide elements
Bottom loading
Heating from all sides
Electrically operated elevator hearth protects operator from the chamber's radiant heat
Thermocouple type B (1760 °C)
7 Inch touchscreen Temp Controller with recording of process data with USB adaptor
Heavy-duty height adjustable wheel
Optional Accessories
Exhaust chimney
|
Model No. |
TMax (℃) |
Inner Chamber Size （mm） |
Volume （I） |
Power Supply |
Weight (kg) |
|
|
Diameter |
H | |||||
|
STS-120-17 |
1700 |
120 |
120 |
1.3 |
3KW/1-Phase |
115 |
|
STS-150-17 |
1700 |
150 |
150 |
2.6 |
4KW/1-Phase |
130 |
|
STS-200-17 |
1700 |
200 |
200 |
6.2 |
4KW/1-Phase |
180 |
|
STS-300-17 |
1700 |
300 |
300 |
21.2 |
8KW/3-Phase |
220 |
Note:Chamber Size could be customized as per requests
