1000℃ Bogie Hearth Furnace
1000C-1150℃ Bogie Hearth Furnace
Metal Sintering Process
Resistance Blet Embedded in the Chamber
Processing Material
Introduction
A bogie-hearth resistance furnace, which comprises a car trolley and a furnace body, During the working process, the electric heating element on the furnace body and the electric heating element below the car bearing refractor layers are simultaneously switched on, so that the temperature balance at each angle, including the bottom, 1000℃/1200℃/1400℃/1700℃ car bottom furnace (box type resistance furnace) mainly provides high temperature heat treatment environment for industrial, research institutes, factories and other industrial , and is applied to carburization new materials such as metal materials, ceramic materials, nano materials, and semiconductor materials and so on .
Equipment Description
Furnace consists of furnace chamber material, heat insulation material and heating elements and car roll-out basement.
It is mounted on a trolley with a burning plate, and the trolley can enter and come out of the furnace along the track.
Furnace body and Temperature controller system box with separate design with safety.
Auto lifting upwards door or door integrated with car bottom, the operation button on the separate control box.
The upwards lifting door has an automatic limit device for control safety
The temperature control system consists of temperature control instruments, control elements and thermocouples.
Heating Zone and Heating Element & Chamber material
Heating Zone: The whole furnace can be divided with different temperature zones and more points temperature control.
Heating Element: 1000°C bogie hearth furnace with high-purity alumina ceramic fiber module block chamber material, High quality alloy resistance band arranged in the furnace two sides with good temperature uniformity. The electric band materials component:0Cr21Al6Nb. And it can be replaced easily. continuous service life of 8000 hours
1200℃ Bogie Hearth Furnace

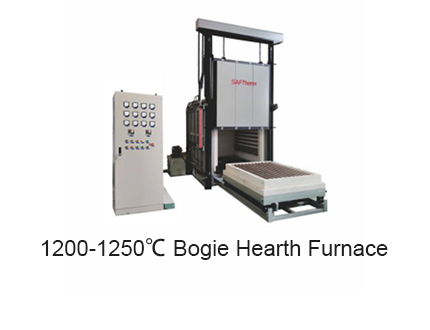

1200-1250℃ Bogie Hearth Furnace

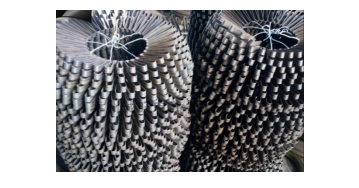

High HRE Alloy Resistance Heaters
Furnace Inner Chamber
Hydraulic Control System
Introduction
1200℃ Bogie Hearth Furnace with high strong solid refractory brick chamber : SAFTHERM Bogie Hearth Furnace manufacturers generally use high quality alloy resistance wire as heating element with ceramic tube insert through to support and install. It is easily for replacing .
Main Features
Tmax 1200 °C
Automatic car bottom sliding
Hydraulic lifting door
1300 grade high solid strong ceramic fibre as insulation material
The furnace use high quality SINO-STEEL solid refractory Mullite brick with good therm shock as insulating materials
Heating from three sides
Two independent heating zones
Thermocouple type N (1200 °C)
Temp Controller Shimaden SRS13A (4 programs with each 8 segments)
Optional Accessories
Alumina tube with heaters
Exhaust air system
|
Model No. |
TMax (℃) |
Inner Chamber Dimensions （mm） |
Volume （I） |
Voltage |
Power Supply |
||
|
W |
D |
H |
|||||
|
STT-288-12 |
1250 |
600 |
800 |
600 |
288 |
380-415V |
3-Phase |
|
STT-640-12 |
1250 |
800 |
1000 |
800 |
640 |
380-415V |
3-Phase |
|
STT-1200-12 |
1250 |
1000 |
1200 |
1000 |
1200 |
380-415V |
3-Phase |
|
STT-2160-12 |
1250 |
1200 |
1500 |
1200 |
2160 |
380-415V |
3-Phase |
1400℃ Bogie Hearth Furnace

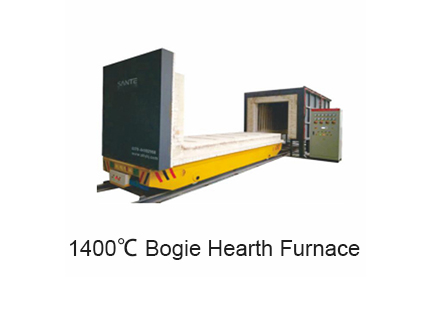

1400℃ Bogie Hearth Furnace
Furnace with Ceramic Products Heating
Furnace Chamber with SIC Rod Hearers
Furnace Chamber with SIC Rod Hearers
Introduction
1400°C bogie furnace with high strong solid refractory brick chamber or alumina ceramic fiber. SAFTHERM generally use high quality SIC rod as heating element. It is easily for replacing .
Main Features
Tmax 1400 °C
Automatic car bottom sliding
Hydraulic lifting door
High Alumina light mullite brick as insulation material
The furnace use high quality SINO-STEEL solid refractory Mullite brick with good therm shock as insulating materials
Heating from two sides
Two independent heating zones
Thermocouple type S (1400 °C)
Temp Controller Shimaden SRS13A (4 programs with each 8 segments)
Optional Accessories
SIC Rod Heaters
Exhaust air system
|
Model No. |
TMax (℃) |
Inner Chamber Dimensions （mm） |
Volume （I） |
Voltage |
Power Supply |
||
|
W |
D |
H |
|||||
|
STT-288-14 |
1400 |
600 |
800 |
600 |
288 |
380-415V |
3-Phase |
|
STT-640-14 |
1400 |
800 |
1000 |
800 |
640 |
380-415V |
3-Phase |
|
STT-1200-14 |
1400 |
1000 |
1200 |
1000 |
1200 |
380-415V |
3-Phase |
Note:Chamber Size could be customized as per requests
1700℃ Bogie Hearth Furnace
1700℃ Bogie Hearth Furnace
Furnace Chamber with SIC Rod Hearers
Furnace Chamber with SIC Rod Hearers
Furnace Control System
Introduction
1700°C bogie furnace with high strong solid refractory brick chamber or alumina ceramic fiber. SAFTHERM generally use high quality MoSi2 rod as heating element. It is easily for replacing .
Main Features
Tmax 1700 °C
Automatic car bottom sliding
Hydraulic lifting door
Heating from two sides
Two independent heating zones
1800 grade ceramic fibre as insulation material
High quality Mosi2 rods
Thermocouple type B (1800 °C)
Temp Controller Yudian 518P (30 segments) or Eurotherm or other brands
Optional Accessories
Mosi2 rod Rod Heaters
Exhaust air system
|
Model No. |
TMax (℃) |
Inner Chamber Dimensions （mm） |
Volume （I） |
Voltage |
Power Supply |
||
|
W |
D |
H |
|||||
|
STT-288-17 |
1700 |
600 |
800 |
600 |
288 |
380-415V |
3-Phase |
|
STT-640-17 |
1700 |
800 |
1000 |
800 |
640 |
380-415V |
3-Phase |
|
STT-1200-17 |
1700 |
1000 |
1200 |
1000 |
1200 |
380-415V |
3-Phase |
Note:Chamber Size could be customized as per requests
