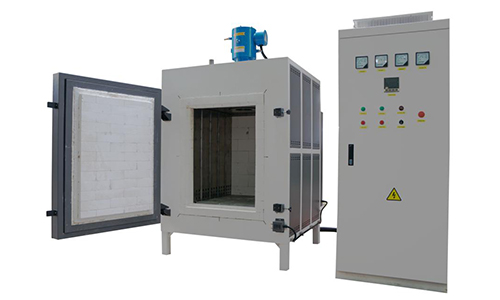

Air Circulation Furnace

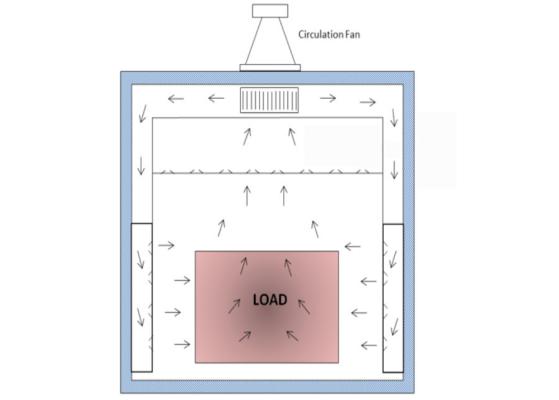

Air Circulation Design

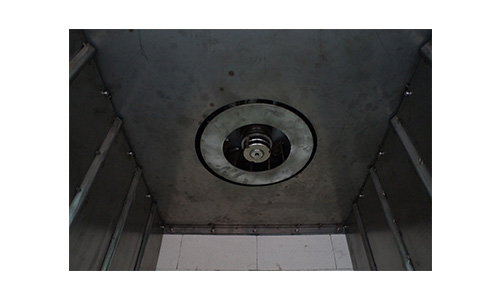

Stainless Steel Chamber with Air Fan
Introduction
Electric forced air furnace furnace is equipped with thermal circulation fan and stainless steel deflector in the working chamber. This kind of design provide a perfect temperature uniformity for heated product. Therefore hot air oven is an ideal choice for hardening, tempering, annealing etc heat treatment. And most welcomed by metal models and other metal materials.
Main Features
• SAFTHERM air circulation furnace can heat up to be Max 850°C.

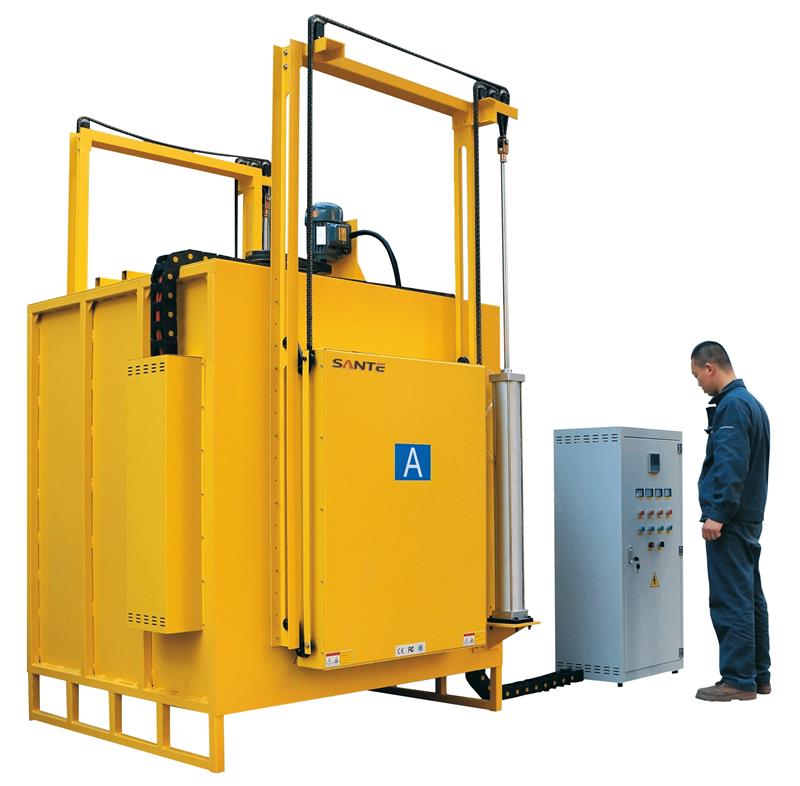

•The structure can be customized to be manual axially door, auto lifting door, car bottom loading, double door design etc. according to users’ technical process.
• Chamber material can be chosen between ceramic fiber modules and light mullite brick.
• Furnace top install hot circulation fan and an can make the forced circulation.
• On the left and right side in the chamber, stainless steel deflector installation strengthen the convection and insulation effect.
• SAFTHERM has wide range of working chamber size also can be customized according to the actual needs of users.
Hot circulation furnace operators should understand the simple structure and working characteristics of air circulation furnaces.
The hot forced air convection furnace must cut off the heating power when loading and unloading the workpiece to ensure the safety of the operator.
The oxides and other residues in the furnace should be removed frequently, and the maintenance work should be performed at least once every two weeks.
It is strictly forbidden to heat the workpiece with corrosive, volatile and explosive atmosphere in the furnace, so as not to cause unnecessary accidents.
Transmission parts should be checked frequently and lubricated.
Regluarly record the condition of the parts including thermocouples, heating element, chamber lining and motor fan, contact with manufacturer for professional suggestions when necessary.
|
Model No. |
TMax (℃) |
Inner Chamber Dimensions （mm） |
Volume （I） |
Power Supply |
||
|
W |
D |
H |
||||
|
STDR-96-10 |
800 |
400 |
600 |
400 |
96 |
15KW/3 Phase |
|
STDR-288-10 |
800 |
600 |
800 |
600 |
288 |
30KW/3 Phase |
Note:Chamber Size could be customized as per requests
