1200℃ Vacuum Annealing Furnace

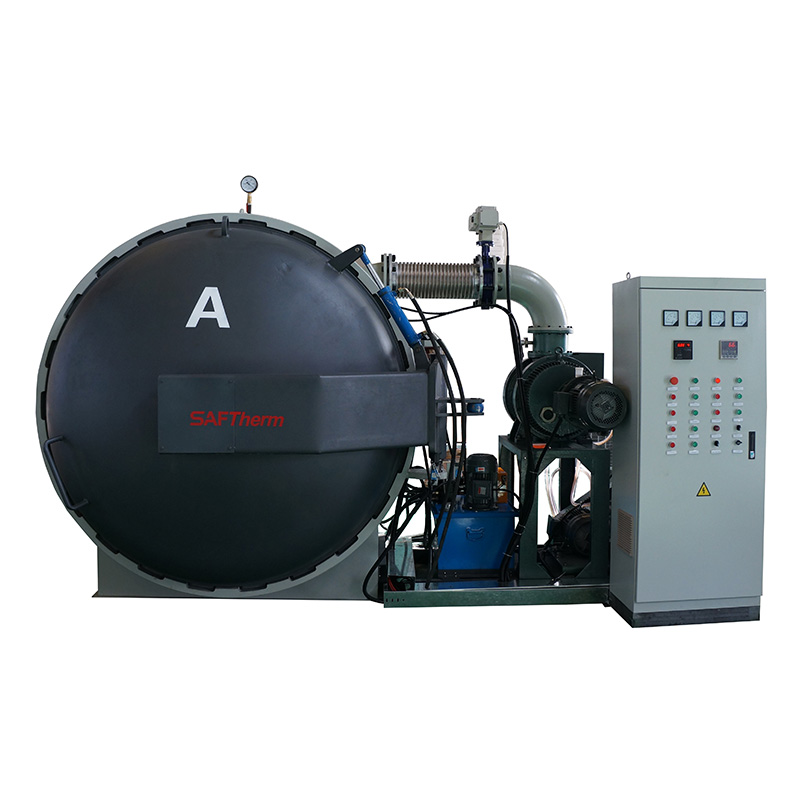

1200℃ Vacuum industrial annealing furnace
Box Annealing Furnace
Sealing Flange
Industrial Chiller
Introduction
The vacuum metal annealing furnace provides the perfect environment for various procedures in many laboratories, providing the controlled temperature and atmosphere specific projects require. The vacuum or controlled atmosphere is desired to complete tasks that require exact temperatures with no room for error. This is the best way to ensure the successful outcome of your project because it is sealed tightly to ensure the proper environment.
Main Features
Tmax 1200 °C
High quality light mullite refractory brick （ceramic fiber are optional)
High level HRE heating wire wearing on the ceramic tube
Heating from three sides for an optimal temperature uniformity
High sealing performance, Max vacuum level up to 1Pa
Available for inert gases such as N2, Argon etc.
Thermocouple type N (1260 °C)
Temp Controller Shimaden SRS13A (4 programs with each 8 segments)
Optional Accessories
Industrial chiller
Vacuum gauge
Hydraulic electric door
Vacuum pumps
Built-in RS485 port and USB adaptor for computer control
Mass flow meter
|
Model No. |
TMax (℃) |
Inner Chamber Dimensions （mm） |
Volume （I） |
Power Supply |
||
|
W |
D |
H |
||||
|
STZ-18-12 |
1200 |
250 |
300 |
250 |
18 |
6KW/1-Phase |
|
STZ-45-12 |
1200 |
300 |
500 |
300 |
45 |
12KW/3-Phase |
|
STZ-96-12 |
1200 |
400 |
600 |
400 |
96 |
18KW/3-Phase |
|
STZ-288-12 |
1200 |
600 |
800 |
600 |
288 |
30KW/3-Phase |
| STZ-640-12 | 1200 | 800 | 1000 | 800 | 640 | 45KW/3-Phase |
Note:Annealing furnace China Chamber Size could be customized as per requests
1400℃ Vacuum Annealing Furnace
1400℃ Sealing Door Annealing Furnace

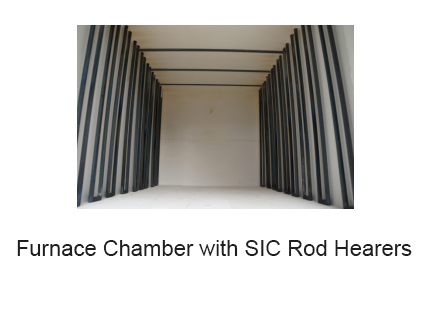

Inner Chamber (optional SIC rods Heater)
Control Panel
Introduction
STZ 1400 series vacuum furnaces feature a sealing chamber with Mitsubishi (Japan) high quality alumina fiber insulation and MoSi2 heating elements. A double walled steel internal housing helps minimize heat loss to exterior surface. Designed water inlet and outlets for furnace cooling.
Main Features
Tmax 1400 °C
1600 grade ceramic fibre as insulation material
High quality light mullite refractory brick as optional
High quality Powerful SiC rods
Heating from two sides
High sealing performance, Max vacuum level up to 1Pa
Available for inert gases such as N2, Argon etc.
Thermocouple type S (1460 °C)
Temp Controller Shimaden SRS13A (4 programs with each 8 segments)
Optional Accessories
Industrial Chiller
Vacuum gauge
Vacuum pumps
Mass flow meter
Built-in RS485 port and USB adaptor for computer control
|
Model No. |
TMax (℃) |
Inner Chamber Dimensions （mm） |
Volume （I） |
Power Supply |
||
|
W |
D |
H |
||||
|
STZ-18-14 |
1400 |
250 |
300 |
250 |
18 |
8KW/3-Phase |
|
STZ-45-14 |
1400 |
300 |
500 |
300 |
45 |
13KW/3-Phase |
|
STZ-96-14 |
1400 |
400 |
600 |
400 |
96 |
21KW/3-Phase |
|
STZ-288-14 |
1400 |
600 |
800 |
600 |
288 |
35KW/3-Phase |
| STZ-640-14 | 1400 | 800 | 1000 | 800 | 640 | 50KW/3-Phase |
Note:Chamber Size could be customized as per requests
1700℃ Vacuum Annealing Furnace
1700℃ Series Vacuum Annealing Furnace
Inner Chamber
Introduction
The 1700C series vacuum furnace provides the perfect environment for various procedures in many laboratories and industries, providing the controlled temperature and atmosphere specific projects require. The controlled atmosphere is desired to complete tasks that require exact temperatures with no room for error. This is the best way to ensure the successful outcome of your project because it is sealed tightly to ensure the proper environment.
Main Features
Tmax 1600 °C (under vacuum atmosphere)
1800 grade ceramic fibre as insulation material
High quality MoSi2 rods
Heating from two sides
High sealing performance, Max vacuum level up to 1Pa
Available for inert gases such as N2, Argon etc.
Thermocouple type B (1760 °C)
Temp Controller Yudian 518P (32 segments)
Optional Accessories
Industrial Chiller
Vacuum gauge
Vacuum pumps
Mass flow meter
Built-in RS485 port and USB adaptor for computer control
|
Model No. |
TMax (℃) |
Inner Chamber Dimensions （mm） |
Volume （I） |
Power Supply |
||
|
W |
D |
H |
||||
|
STZ-18-17 |
1700 |
250 |
300 |
250 |
18 |
8KW/3-Phase |
|
STZ-45-17 |
1700 |
300 |
500 |
300 |
45 |
15KW/3-Phase |
|
STZ-96-17 |
1700 |
400 |
600 |
400 |
96 |
23KW/3-Phase |
|
STZ-288-17 |
1700 |
600 |
800 |
600 |
288 |
38KW/3-Phase |
| STZ-640-17 | 1700 | 800 | 1000 | 800 | 640 | 55KW/3-Phase |
Note:Chamber Size could be customized as per requests
