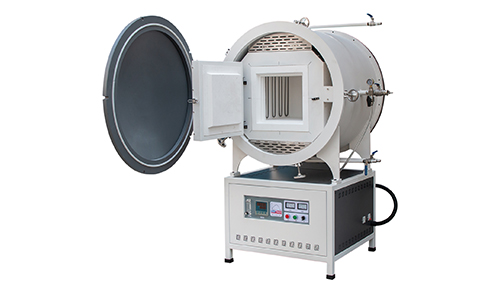

1700℃ Vacuum Sintering Furnace
1700℃ Series Vacuum Sintering Furnace
Inner Chamber with heating elements
Introduction
The 1700C series vacuum furnace provides the perfect environment for various procedures in many laboratories and industries, providing the controlled temperature and atmosphere specific projects require. The controlled atmosphere is desired to complete tasks that require exact temperatures with no room for error. This is the best way to ensure the successful outcome of your project because it is sealed tightly to ensure the proper environment.
Main Features
Tmax 1600 °C (under vacuum atmosphere)
1800 grade ceramic fibre as insulation material
High quality MoSi2 rods
Heating from two sides
High sealing performance, Max vacuum level up to 1Pa
Available for inert gases such as N2, Argon etc.
Thermocouple type B (1760 °C)
Temp Controller Yudian 518P (32 segments)
Optional Accessories
Industrial Chiller
Vacuum gauge
Vacuum pumps
Mass flow meter
Built-in RS485 port and USB adaptor for computer control
|
Model No. |
TMax (℃) |
Inner Chamber Dimensions （mm） |
Volume （I） |
Power Supply |
||
|
W |
D |
H |
||||
|
STZ-18-17 |
1700 |
250 |
300 |
250 |
18 |
8KW/3-Phase |
|
STZ-45-17 |
1700 |
300 |
500 |
300 |
45 |
15KW/3-Phase |
|
STZ-96-17 |
1700 |
400 |
600 |
400 |
96 |
23KW/3-Phase |
|
STZ-288-17 |
1700 |
600 |
800 |
600 |
288 |
38KW/3-Phase |
| STZ-640-17 | 1700 | 800 | 1000 | 800 | 640 | 55KW/3-Phase |
Note:Chamber Size could be customized as per requests
