1200℃ Muffle Furnace

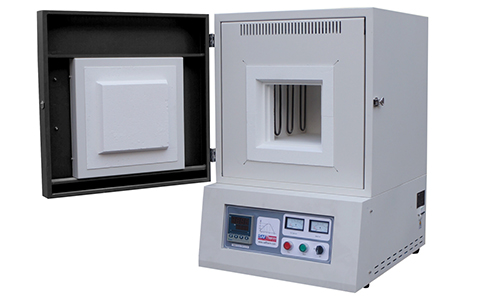

1200℃ Lab Muffle Chamber Furnace
1200C CE certified Lab Muffle Furnace

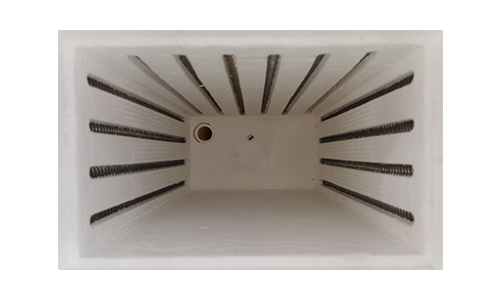

Inner Chamber with Exhaust Vents
Firing Chamber
Introduction
1200℃ STM series chamber muffle furnace are mainly for the daily application development of the laboratory,high-quality furnace materials and stable temperature control system to ensure the reliability of the experimental data; the product uses high-purity alumina material as the furnace material, and the high-quality alloy resistance wire is used for heating element, and the temperature controller uses microcomputer PID control module to achieve precise temperature control and constant temperature requirements.
Main Features
Tmax 1200 °C
High quality ceramic fiber block
High level HRE heating wire embedded in the ceramic chamber
Heating from three sides for an optimal temperature uniformity
Thermocouple type N (1260 °C)
Temp Controller Shimaden SRS13A (4 programs with each 8 segments)
Optional Accessories
Exhaust chimney
Stainless steel frame
Paperless recorder
Built-in RS485 port and USB adaptor as optional setting for comptur control
|
Model No. |
TMax (℃) |
Inner Chamber Dimensions （mm） |
Volume （I） |
Power Supply |
||
|
W |
D |
H |
||||
|
STM-3-12 |
1200 |
150 |
150 |
150 |
3 |
2.5KW/1-Phase |
|
STM-8-12 |
1200 |
200 |
300 |
120 |
8 |
3KW/1-Phase |
|
STM-18-12 |
1200 |
250 |
300 |
250 |
18 |
3KW/1-Phase |
|
STM-30-12 |
1200 |
300 |
500 |
200 |
30 |
6KW/1-Phase |
|
STM-64-12 |
1200 |
400 |
400 |
400 |
64 |
15KW/3-Phase |
Note:Chamber Size could be customized as per requests
1400℃ Muffle Furnace

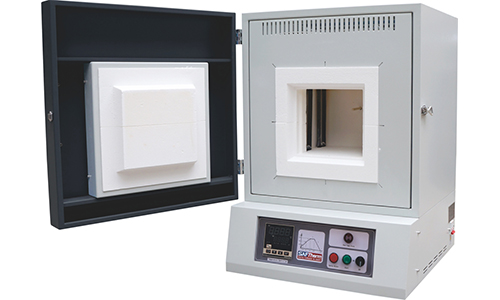

1400℃ Lab Muffle Chamber Furnace
Furnace with Manual Door
Inner Chamber (optional SIC rods Heater)

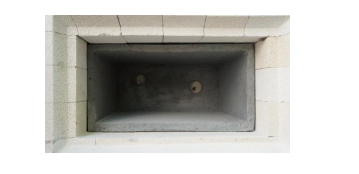

Silicon Carbide box with Special using
Introduction
Ceramic muffle furnaceDouble skin construction ensures safe outer case temperature, Manually operated opening door keeps the hot face away from the operator. 1400°C range heated by high quality silicon carbide elements on the left and right side. Safety door interlock isolates power from the elements whenever the door is opened.
Main Features
Tmax 1400 °C
1600 grade ceramic fibre as insulation material
High quality light mullite refractory brick as optional
High quality SiC rods
Heating from two sides
Thermocouple type S (1460 °C)
Temp Controller Shimaden SRS13A (4 programs with each 8 segments)
Optional Accessories
Paperless Recorder
Built-in RS485 port and USB adaptor as optional setting for comptur control
|
Model No. |
TMax (℃) |
Inner Chamber Dimensions （mm） |
Volume （I） |
Power Supply |
||
|
W |
D |
H |
||||
|
STM-3-14 |
1400 |
150 |
150 |
150 |
3 |
3KW/1-Phase |
|
STM-8-14 |
1400 |
200 |
200 |
200 |
8 |
5KW/1-Phase |
|
STM-18-14 |
1400 |
250 |
300 |
250 |
18 |
6KW/1-Phase |
|
STM-36-14 |
1400 |
300 |
400 |
300 |
36 |
12KW/3-Phase |
Note:Chamber Size could be customized as per requests
1700℃ Lab Muffle Furnace
1700℃ Lab Muffle Chamber Furnace
MoSi2 Rod Heating Elements
Introduction
The 1700C degree muffle furnace is often customized in order to precisely meet the user’s requirements on the sintered material. The furnace adopts U type MoSi2 rods as heaters. Vertically distributed in two sides, ensures an improved temperature gradient. Resistance of a MoSi2 heating element does not change under normal use, and you can mix new and old elements together.
Main Features
Tmax 1700 °C
1800 grade ceramic fibre as insulation material
High quality MoSi2 rods
Heating from two sides
Thermocouple type B (1760 °C)
Temp Controller Yudian 518P (32 segments)
Optional Accessories
Exhaust chimney
Shimaden FP93 Controller
Model No. | TMax (℃) | Inner Chamber Dimensions （mm） | Volume （I） | Power Supply | ||
W | D | H | ||||
STM-3-17 | 1700 | 150 | 150 | 150 | 3 | 4KW/1-Phase |
STM-8-17 | 1700 | 200 | 200 | 200 | 8 | 5KW/1-Phase |
STM-18-17 | 1700 | 250 | 300 | 250 | 18 | 7KW/3-Phase |
STM-36-17 | 1700 | 300 | 400 | 300 | 36 | 13KW/3-Phase |
Note:Chamber Size could be customized as per requests
