Catalyst Calcination Furnace
1200C Degree Catalyst Calcination Furnace

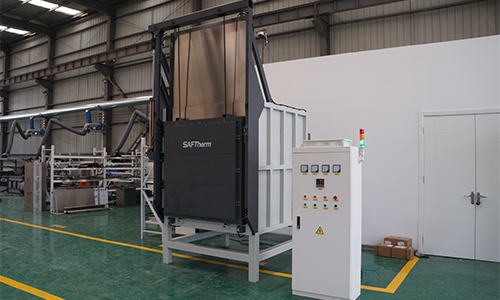

Catalyst Calcination Furnace

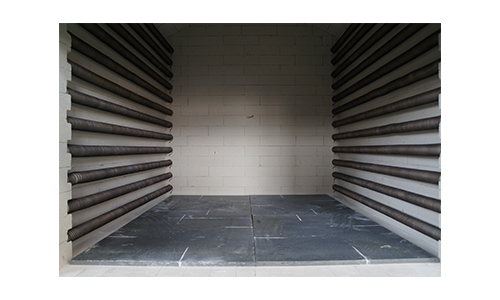

Inner chamber with SiC Plate
Temperature Controller
Introduction
The 1200C series Graphene crystal growth furnace are ideal for reduction, calcination, sintering, application of coatings, and other processes. The furnace features dual-housing, adopts high quality heating wire as heaters, vertically distributed in four sides.
Main Features
Tmax 1200 °C
Chamber heated by HRE heating wire
High quality high alumina light-mullite bricks
Heating from three sides (five sides are available)
Thermocouple type N (1260 °C)
7 Inch touchscreen Temp Controller with recording of process data with USB adaptor
Optional Accessories
Stainless Steel Frame to load more material
Paperless recorder
Built-in RS485 port and USB adaptor for comptur control
Model No. | TMax (℃) | Inner Chamber Dimensions （mm） | Volume （I） | Power Supply | ||
W | D | H | ||||
STD-96-12 | 1200 | 400 | 600 | 400 | 400 | 18KW/3-Phase |
STD-150-12 | 1200 | 450 | 530 | 590 | 590 | 24KW/3-Phase |
STD-288-12 | 1200 | 600 | 800 | 600 | 600 | 30KW/3-Phase |
STD-640-12 | 1200 | 800 | 1000 | 800 | 800 | 45KW/3-Phase |
| STD-1200-12 | 1200 | 1000 | 1200 | 1000 | 1000 | 80KW/3-Phase |
Note:Chamber Size could be customized as per requests
